PRODUCT INTRODUCTION

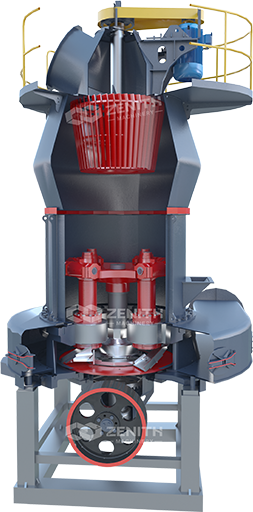

Zenith MTW6X Fully Thin Oil Lubricated Intelligent European Trapezium Mill is based on the mature technology of the MTW European trapezium grinding mill, the fifth-generation best-selling product. With the purpose of "smarter, more energy-saving, more efficient, more environmentally friendly and more reliable", it has been developed through multiple structural improvements and innovations, and deeply integrated the all-thin-oil lubrication system with the Internet of Things intelligent control technology. This high-performance product deeply meets the current urgent needs of powder production companies for energy saving.

It precisely meets the urgent needs of powder processing enterprises for energy conservation, consumption reduction, quality improvement and efficiency enhancement, and can help build a modern powder production line characterized by large-scale, intensive, green, intelligent, safe and high-quality operation.

CORE TECHNOLOGY

Thin oil lubrication boller system

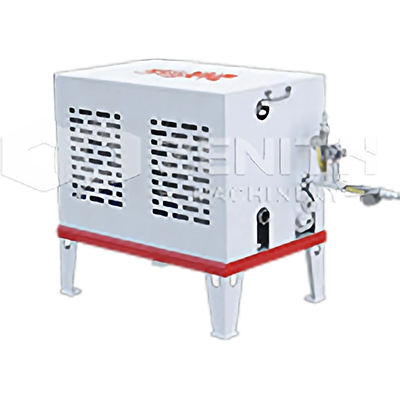

Thin oil lubrication station

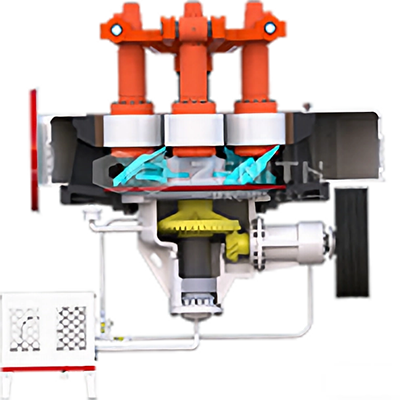

Thin oil lubrication transmission system

TECHNICAL ADVANTAGES

01
Bevel gear integral transmission

Fewer transmission chains and more precise transmission ratios.
02
Full thin oil lubrication

The main engine system and grinding rollers are all lubricated with thin oil.
03
New analyzer

Better sealing, high air flow speed, high powder selection efficiency and precision.
04
High performance fan

It improves aerodynamic efficiency by15% and saves 8-10% of electricity.
05
Multi-point condition monitoring

It provides warnings, ensuring stable operation and higher quality powder.
06
Mobile APP remote control

An intelligent control system, it collects and analyzes data in real time.

TECHNICAL PARAMETERS

Model	MTW6X150	MTW6X185	MTW6X198	MTW6X218
Motor of Main Mill (KW)	110-132	185-200	220-250	280-315
Motor of Blower (KW)	90-110	185-200	220-250	280-315
Motor of Classifier (kW)	18.5-22	30-37	45-55	55-75
Main Mill Rotating Speed (r/min)	80-105	65-90	60-85	50-70
Max input Size (mm)	35	40	45	50
Fineness (mm)	1.6-0.045mm, finest 0.038mm
Capacity (t/h)	6-25	10-38	15-45	18-55

WORKING PRINCIPLE

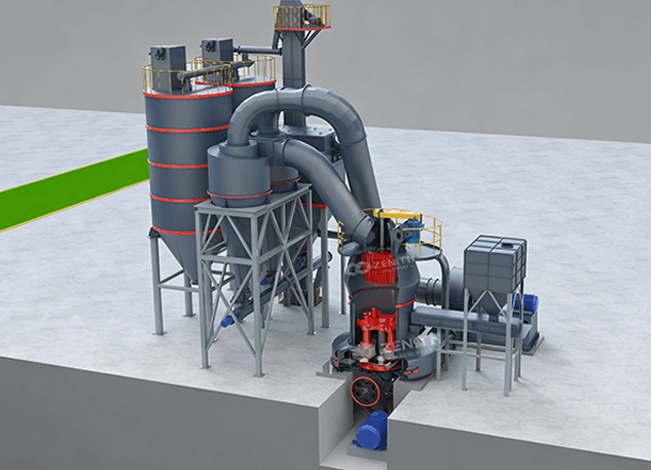

Qualified materials screened through the crushing process are uniformly and quantitatively conveyed to the main mill chamber by a variable-frequency belt feeder for grinding operations. The ground materials are then transported to the classifier by the air flow of the fan for powder particle size classification. During the classification process, materials that fail to meet the fineness standard fall back into the mill chamber for regrinding, while qualified powder is carried by the air flow through pipelines into the cyclone powder collector to complete gas-solid separation and powder collection.

The collected powder is discharged through the discharge mechanism as the final finished powder. The separated air flow returns to the fan through the air return pipe at the top of the cyclone powder collector, forming a closed-loop air circulation system. The entire equipment operates in a negative pressure mode and is equipped with a pulse dust collector, with all emission indicators meeting the requirements of national environmental protection specifications.

APPLICATION FIELDS

It is suitable for grinding various non-flammable and non-ex-plosive materials with a Mohs hardness below 7 and a water content of less than 6% in the fields of building materials,metallurgy, electric power, chemical industry, new energy,new materials, large and medium-sized non-metallic mineral powder making, limestone, calcite, dolomite, marble, gypsum, quicklime, heavy calcium carbonate powder making, environmentally friendly desulfurized limestone powder making,magnetic rare earth materials, bentonite, kaolin, bauxite, barite, clean coal powder preparation, petroleum coke powder making, etc.
