VERSATILE INDUSTRIAL FILLER, GCC POWERS MULTI-SECTOR MANUFACTURING

Functional inorganic fillers are widely applied across the modern industrial system. They are extensively used in the production of interior plastic parts for automobile manufacturing, eco-friendly exterior wall coatings for construction projects, household paper in the light industry, and sealing products for the rubber and plastics sector.

As a major category, ground calcium carbonate (GCC) features high whiteness, low Mohs hardness, stable chemical properties and excellent dispersibility. Thanks to its superior comprehensive performance and outstanding cost-effectiveness, ground calcium carbonate has long dominated the global inorganic filler market and remains the most widely used filler in industrial production today.

DEVELOPMENT TRENDS OF GROUND CALCIUM CARBONATE

With the continuous upgrading of modern industries, the market has set increasingly stringent requirements on the quality, fineness and application performance of powder raw materials. Different application scenarios call for GCC of varied fineness grades: 400-mesh products are widely used in the production of various coatings, 800-mesh grades are suitable for sealant manufacturing, while ultra-fine GCC of 1250 mesh and above is specially applied in high-end plastic products. It is evident that the refinement and ultra-fining processing of GCC has become an inevitable trend of the industry.

XZM ULTRAFINE POWDER MILL ENABLES HIGH-EFFICIENCY ULTRAFINE GRINDING OF GROUND CALCIUM CARBONATE

With nearly four decades of dedication to the global powder grinding equipment industry, Zenith has established itself as an industry benchmark. We thoroughly grasp the development trends and production challenges of the ground calcium carbonate processing sector, and consistently drive product upgrading through technological innovation.
As our flagship unit for the non-metallic ore ultra-fine grinding market, XZM Ultrafine Powder Mill has been proven in numerous projects worldwide. It is specially developed for ultrafine powder production of ores such as ground calcium carbonate, calcite and limestone.
The fineness of the equipment can be flexibly adjusted from 325 mesh to 2500 mesh, producing powder with uniform particle size and high purity. Equipped with a high-efficiency pulse dust collector, it features dust emissions far below international environmental standards. Compared with traditional grinding mills, its energy consumption per unit capacity is reduced by 15%-20%. It maintains stable production efficiency while effectively cutting customers' operating costs.

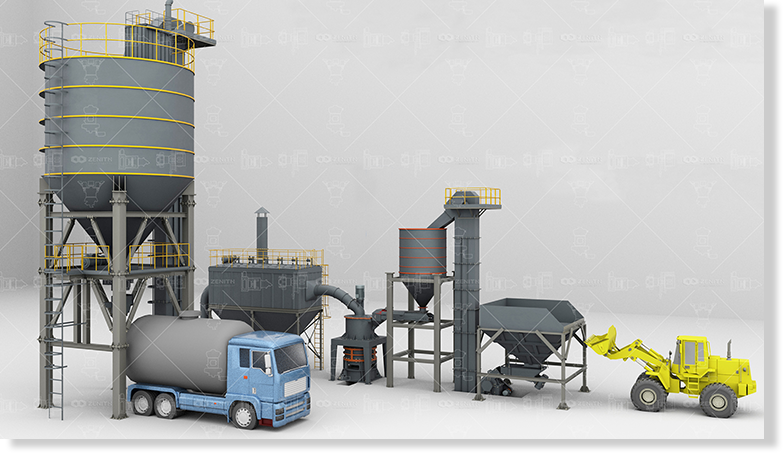

PROCESS FLOW OF XZM ULTRAFINE GRINDING MILL

Crushed material is fed into the main machine, falling onto the turntable where grinding rollers crush it under centrifugal force. Material enters the classifier with airflow; unqualified particles return for re-grinding, while qualified powder is collected in the cyclone and pulse dust collector. Filtered airflow is released, and the system operates under negative pressure.

ULTRAFINE GRINDING SOLUTIONS FOR GCC EXPORTED WORLDWIDE

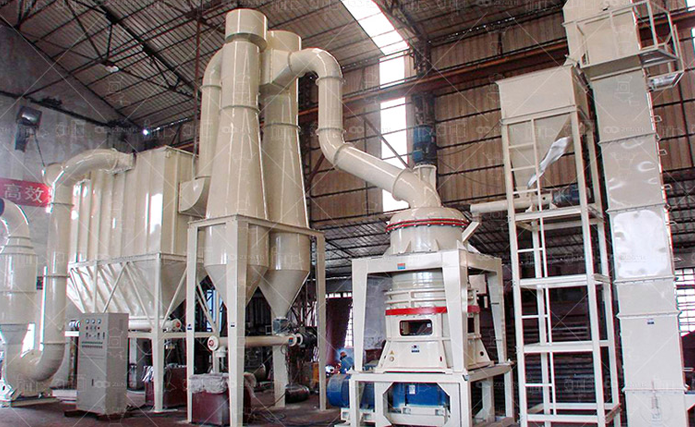

Calcium Carbonate Micron Powder Modification Production Line in South Africa

Material: Calcium Carbonate
Input Size:＜10mm
Output Size: 1000-2500 mesh
Capacity: 5-10t/h

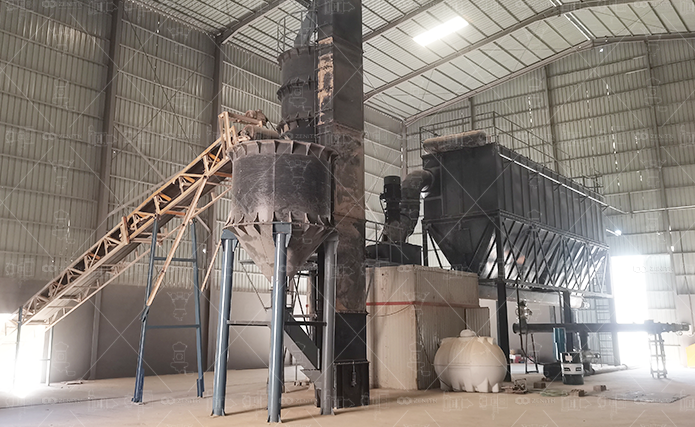

50,000 TPY GCC Grinding Production Line in India

Material: Ground Calcium Carbonate
Feed Size: ＜15mm
Output Size: 2000-2500 mesh
Capacity: 50,000 TPY

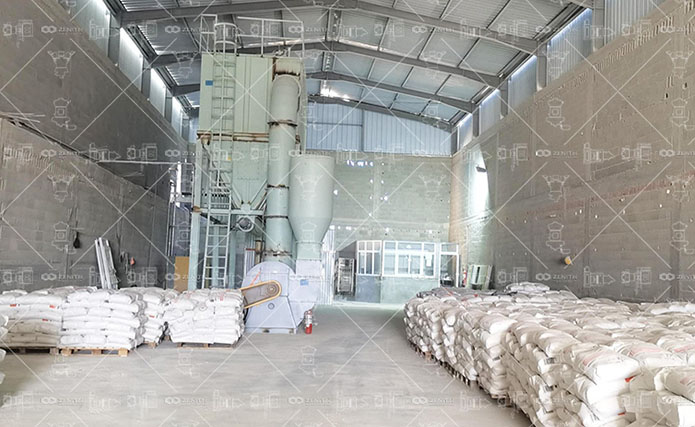

30,000 TPY GCC Grinding Production Line in Brazil

Material: Ground Calcium Carbonate
Input Size: ＜20mm
Output Size: 1000-1500 mesh
Capacity: 30,000 TPY

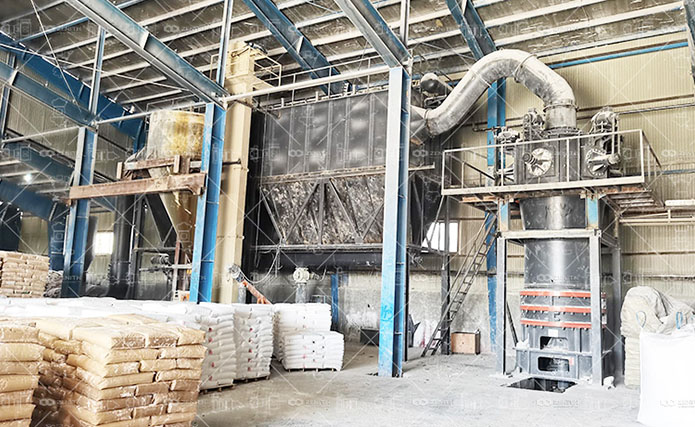

20,000 TPY GCC Grinding Production Line in Saudi Arabia

Material: Ground Calcium Carbonate
Feed Size: ＜10mm
Output Size: 800-1500 mesh
Capacity: 20,000 TPY
